Shenzhen Chenyuan Technology Co., LTD

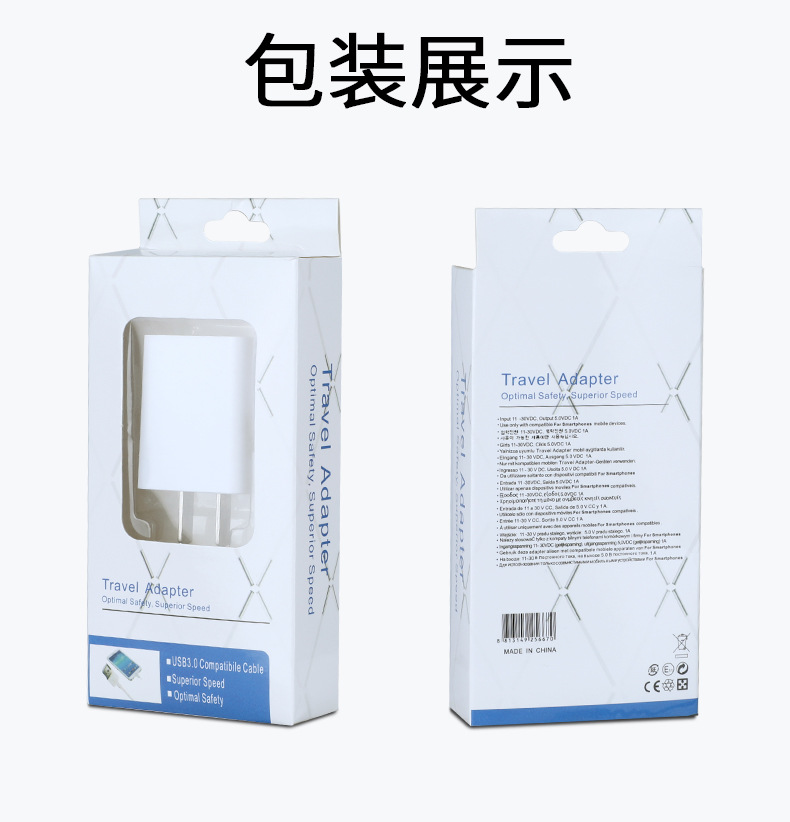

We very welcome customers to inspect the factory, and we support customization according to customer needs (IC, power board, plug specifications, LOGO or packaging, etc.) Welcome to consult customer service, large quantity is preferred!

Contact number: 18318616505 Contact: Zhong Sheng

Tip:

1, the product model has 3C standard, there are US standard (export special) optional.

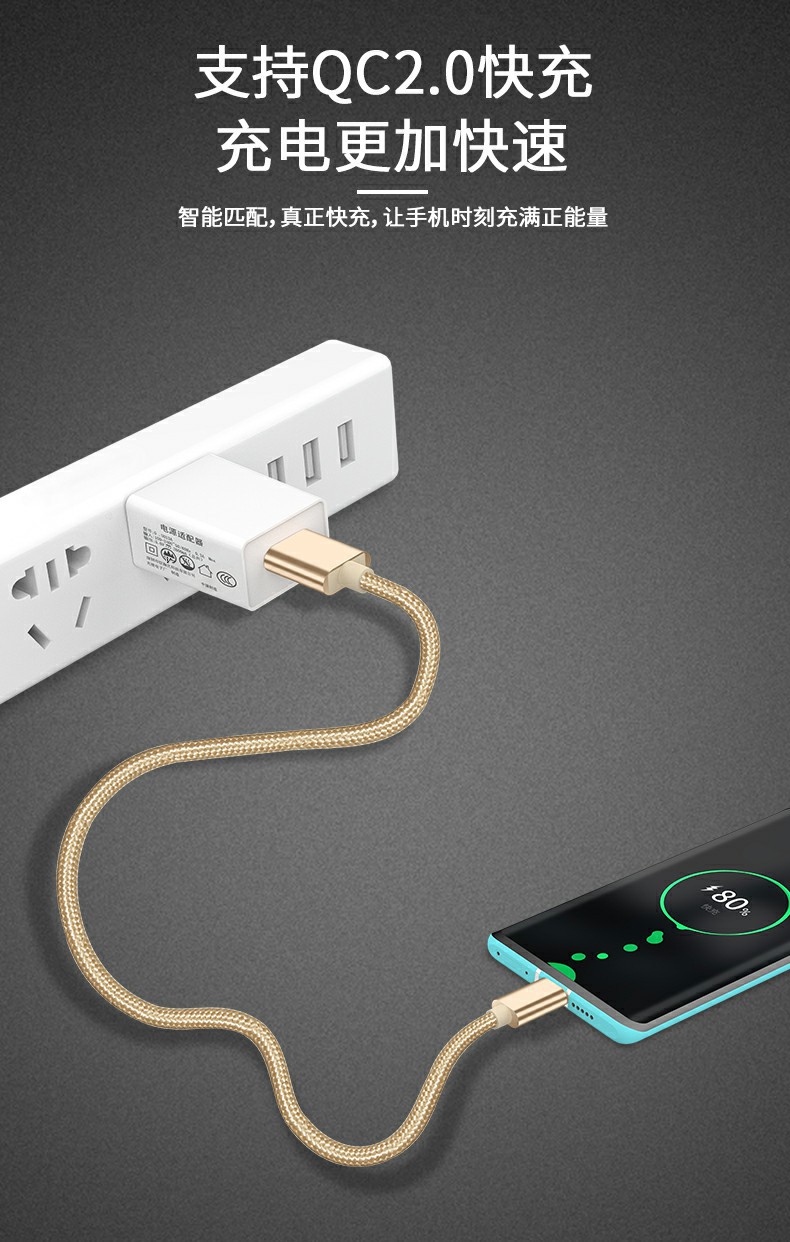

2, if the product model is selected SKU has wiring, the default with white charging head +PVC rubber wire, one drag three nylon braided wire, stable quality and fast speed, if you need to match other lines, please contact customer service.

3, the product model marked TPC is a TYPE-C interface, which is suitable for some new Huawei, millet, Meizu, letV and other models.

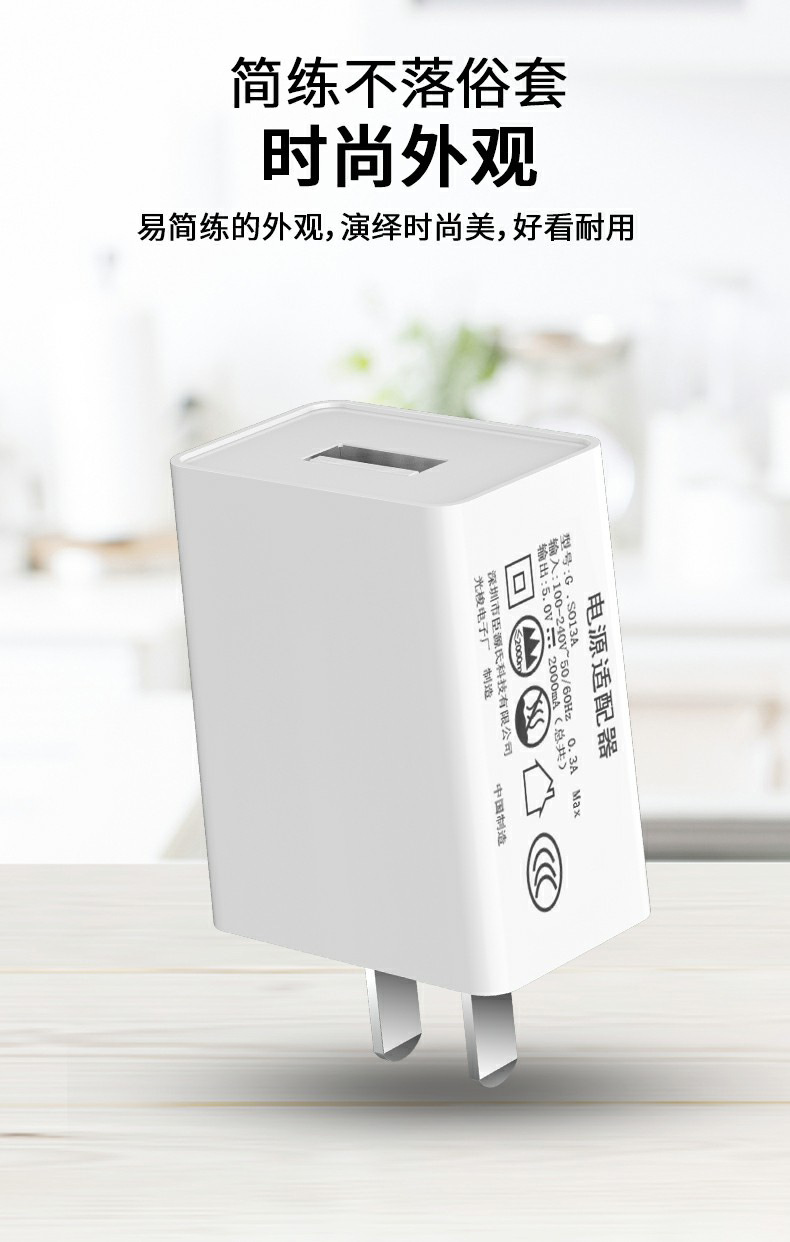

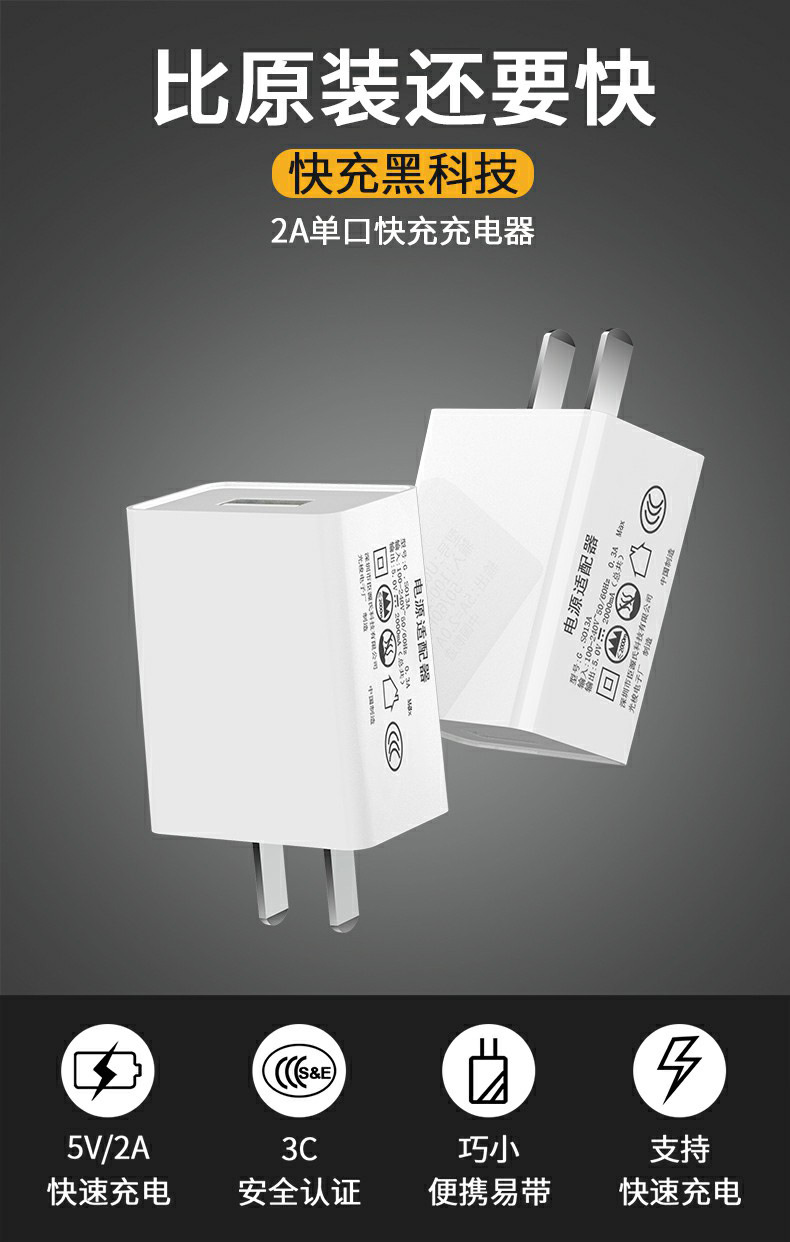

Product name: Charger
Product specifications: Medium gauge pin (can be customized daily, European, American, British)
Product color: White Black (customizable)

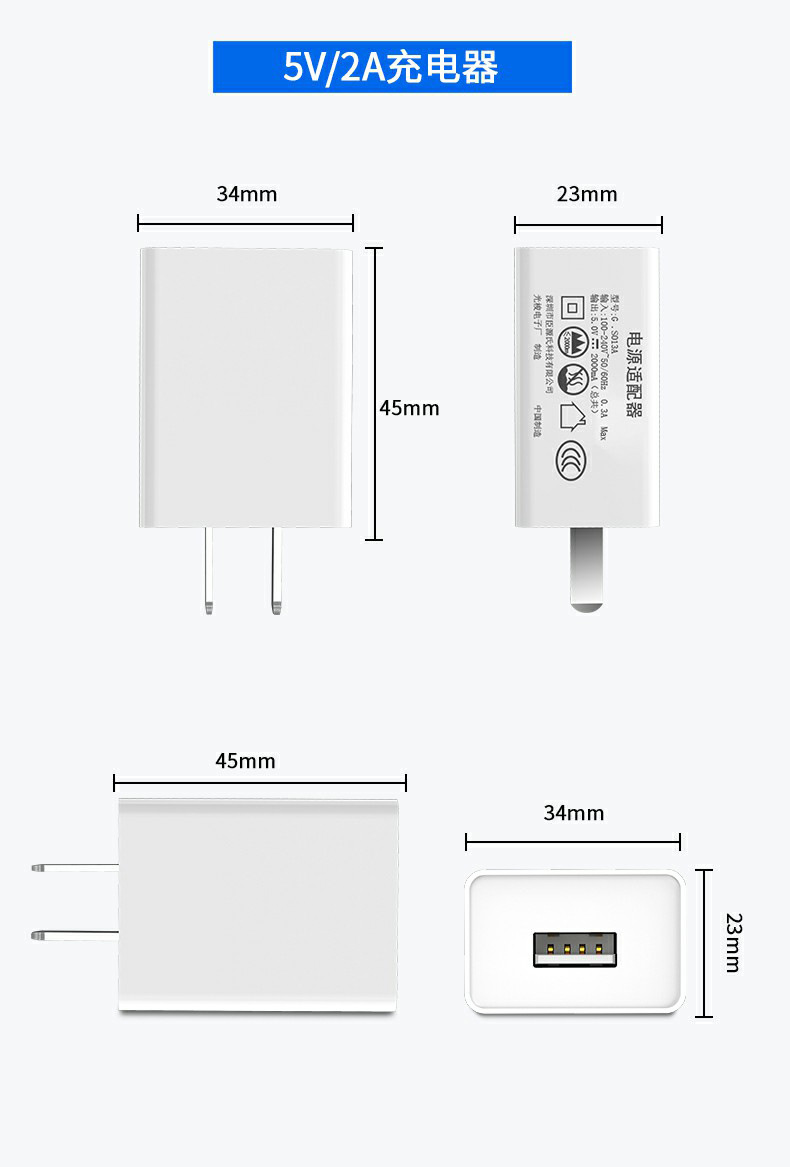

Dimensions: 34*45*23mm

Product weight: 36.2g
Input voltage: AC 100-240V 50-60Hz 0.3A max

Output voltage: DC 5.0V-- 2.0A

Efficiency: 85%
Voltage adjustment rate: 5%
Working temperature: 0-40℃, 10%-90%RH (no condensation)
Output Ripple & Noise: 80-120mVp
Output protection: short circuit protection, overvoltage protection, overcharge protection, overheat protection
Storage temperature: -20℃+80℃, 10%-90%RH (no condensation)
Aging: Full load aging
Protection function: overload protection 105%-150% rated power, can be automatically protected
Insulation resistance: Input/output ≥500MΩ Input/shell ≥500MΩ

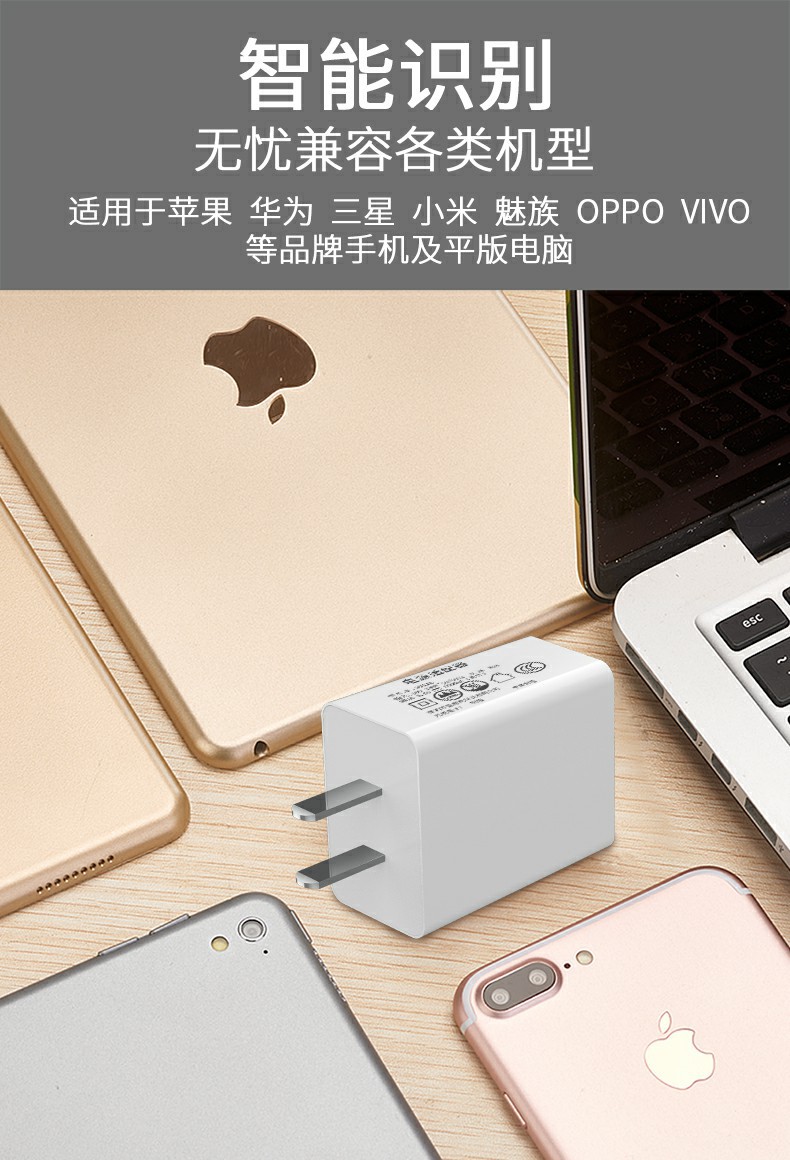

Applicable products: smart phone, tablet computer, digital electronic equipment.

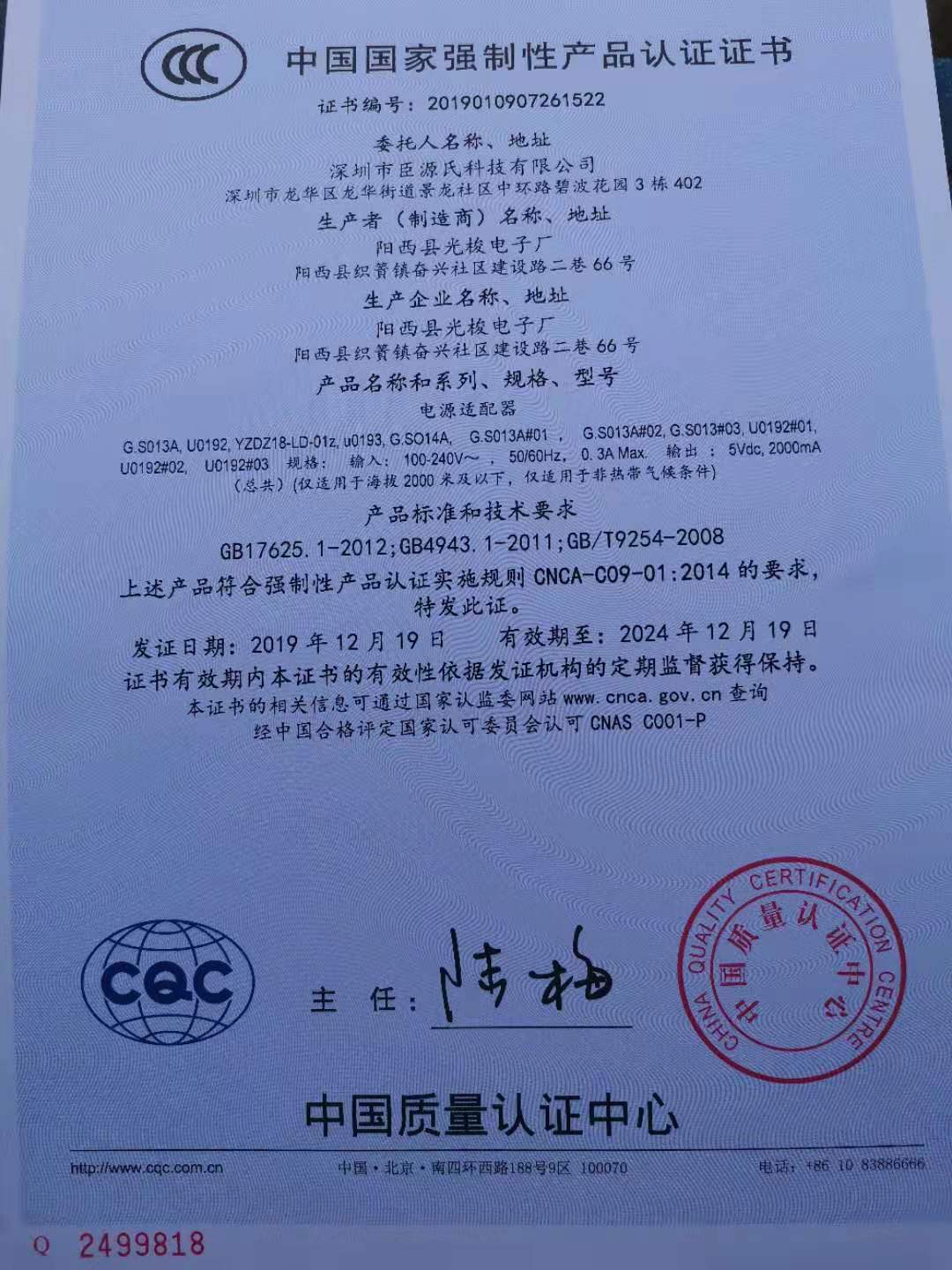

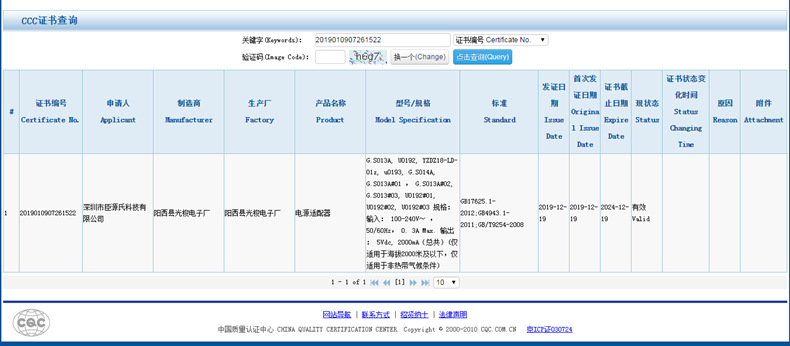

Product certification: 3C CE FCC ROHS

(The above data is internal self-test, and the specific 3C certificate test report is the standard)

Product features:
1: Good safety performance, high reliability, in full accordance with the application for safety certification standards and procedures.

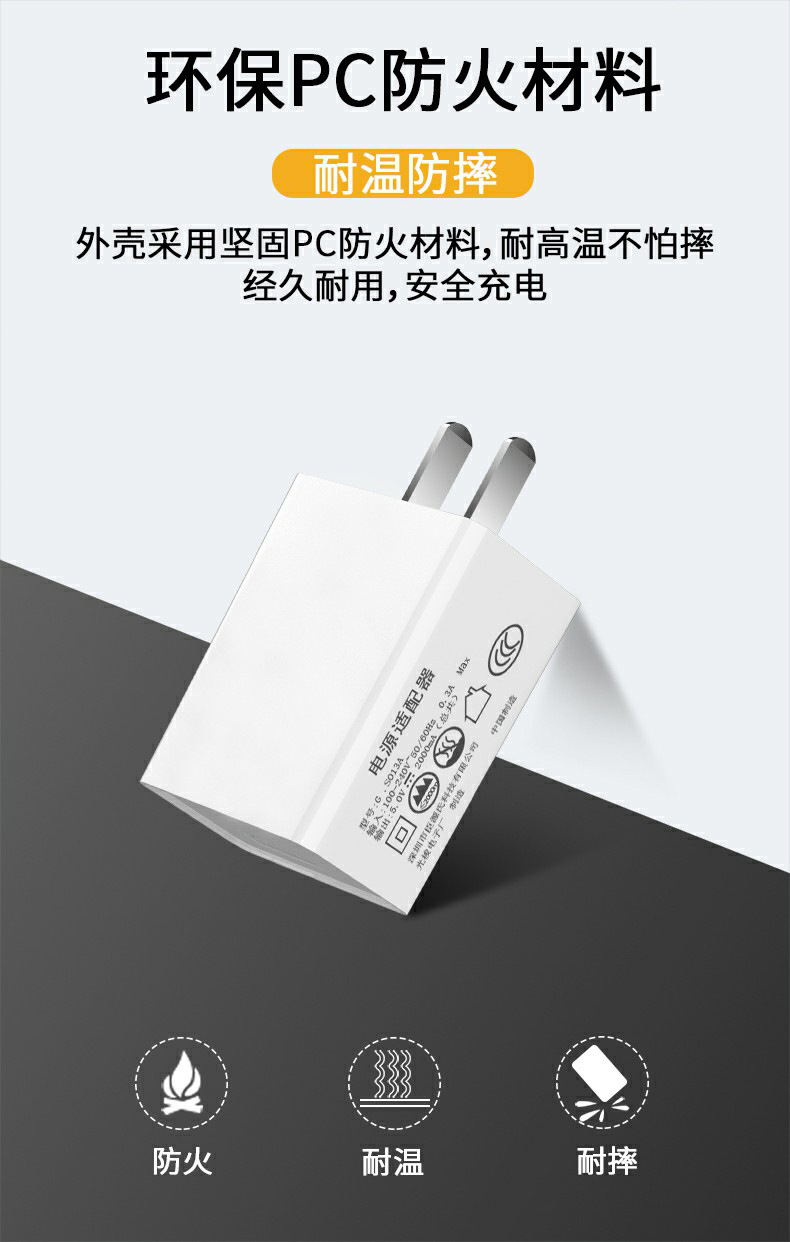

2: The shell is safer with flame-retardant material, moisture-proof and dust-proof.
3: sufficient current, sufficient power, shorter charging time.
4: Ultra-low no-load and standby energy loss, in line with national energy conservation standards.
5: Good anti-interference performance, built-in anti-electromagnetic interference filter.
6: Wide input voltage range, all 100-240V, in line with global standards.

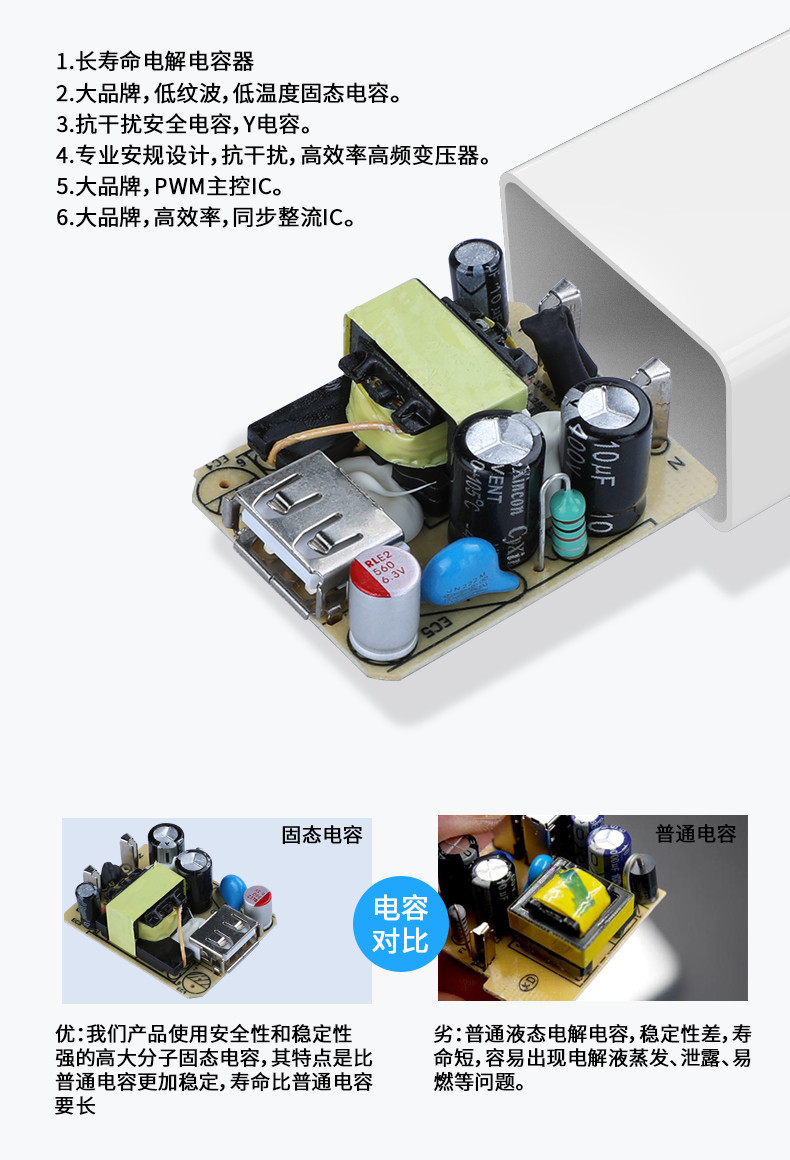

7: The primary insulation performance is good, and the high frequency transformer uses vacuum penetration.
8: Full load high temperature burning machine, aging test.

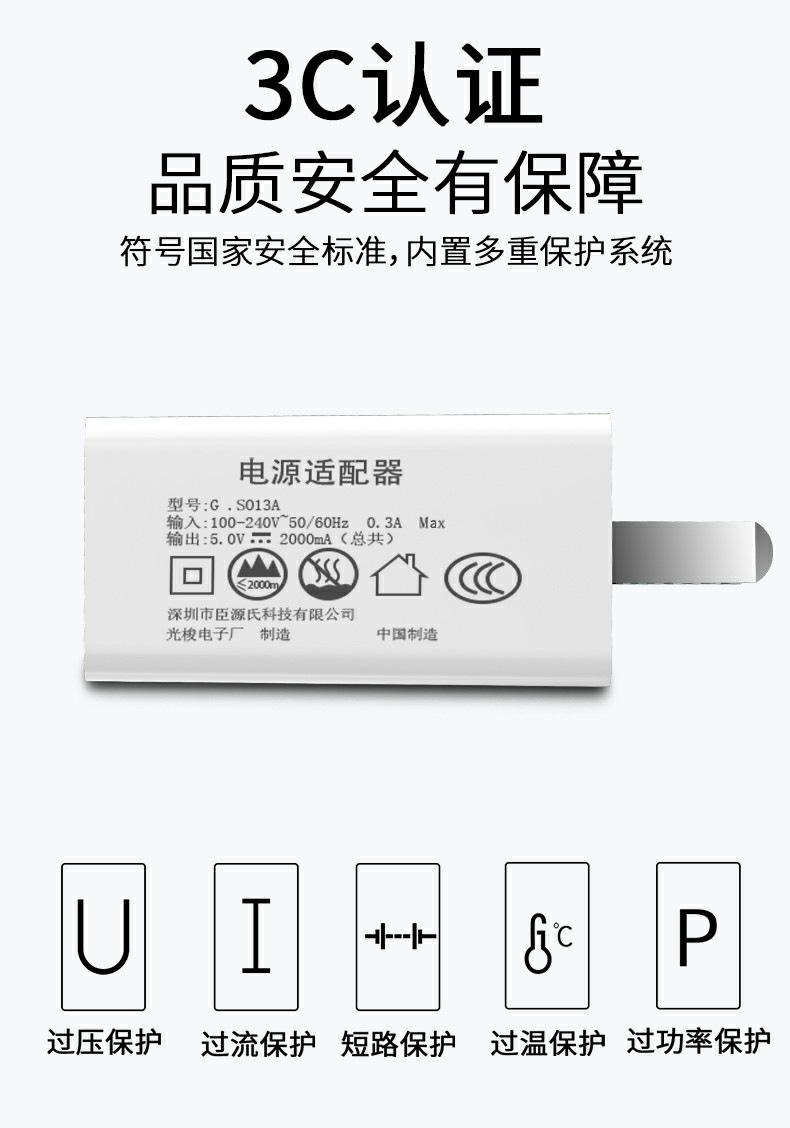

9: With over voltage, over current, over power, short circuit protection.
